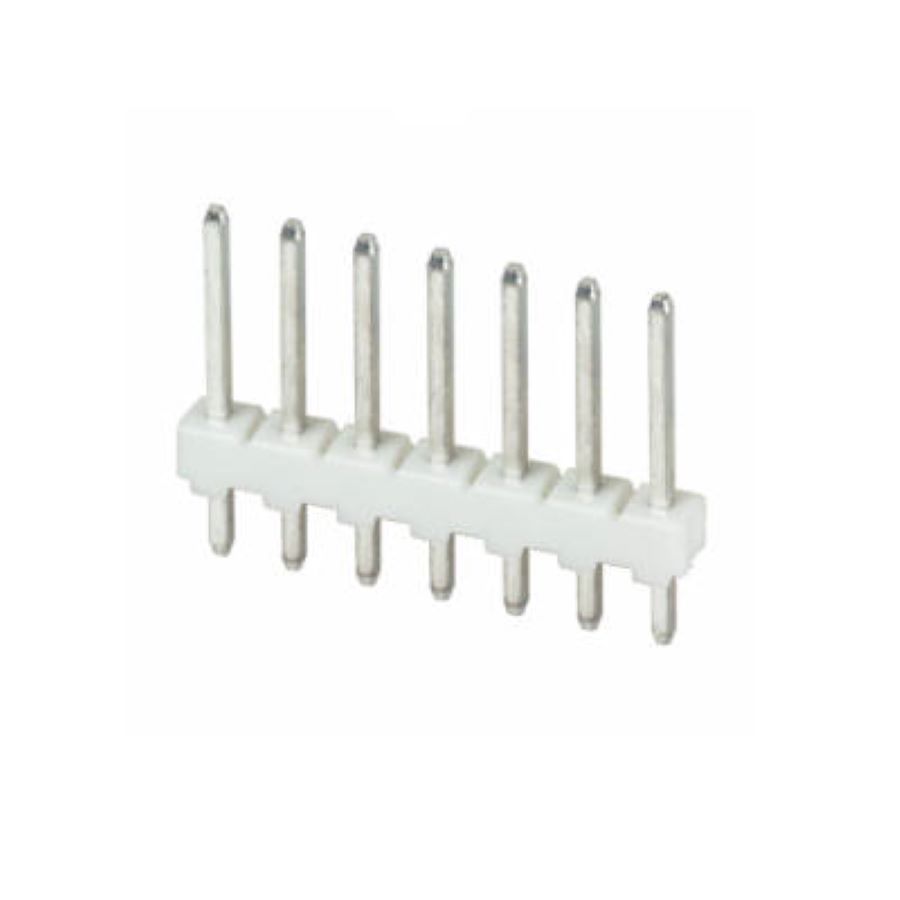

3-644456-7
Manufacturer:
TE Connectivity
Mfr.Part #:
3-644456-7
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Pin, Plug Number of Positions:7 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 20.0152 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 250 V |
| Height | 10.03 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 2.33 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Contact Plating | Tin |
| Pitch | 2.54 mm |
| Current Rating | 5 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Vertical |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Natural, White |
| Gender | Male |
| Number of Contacts | 7 |
| ELV | Compliant |
| Connector Type | Header, Pin, Plug |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Connector System | Wire-to-Board |
| Contact Style | Straight |
| Contact Resistance | 6 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Contact Current Rating | 5 A |
| Housing Color | Natural, White |
| Plating | Tin |
| shrouded | No |
| Contact Mating Length | 7.493 mm |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.6002 mm |
| Tail Length | 2.794 mm |
| Plating Thickness | 1.27 µm |
| Contact Gender | Male |
| Mating Post Length | 7.49 mm |
| Contact Shape | Square |
| Underplate Material | Nickel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| Mating Retention | Without |
| Termination Post Length | 2.79 mm |
| PCB Mount Retention | Without |
| PCB Mount Alignment | Without |
Stock: 819
Distributors
pcbx
pcbxUnit Price$0.26246
Ext.Price$0.26246
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.26246 | $0.26246 |
| 10 | $0.21886 | $2.18860 |
| 25 | $0.20176 | $5.04400 |
| 50 | $0.20124 | $10.06200 |
| 100 | $0.20073 | $20.07300 |
| 300 | $0.20022 | $60.06600 |
| 500 | $0.19971 | $99.85500 |
| 1000 | $0.19920 | $199.20000 |
| 3000 | $0.18278 | $548.34000 |
| 5000 | $0.16771 | $838.55000 |
| 10000 | $0.15389 | $1538.90000 |
